Top End Piston Kit forged Replica

Pro Replica – Forged piston in original OE form


All pistons are heat-treated with a T-5 hardening and tempering cycle



All piston skirts are coated with a high-tech Molybdenum Disulphite coating for faster break-in time and increased piston life



Forged pistons are forged from 2618 aluminum for superior strength and durability



Forged Replica pistons are forged OE replacements



Replica pistons and all rings are OEM replacements

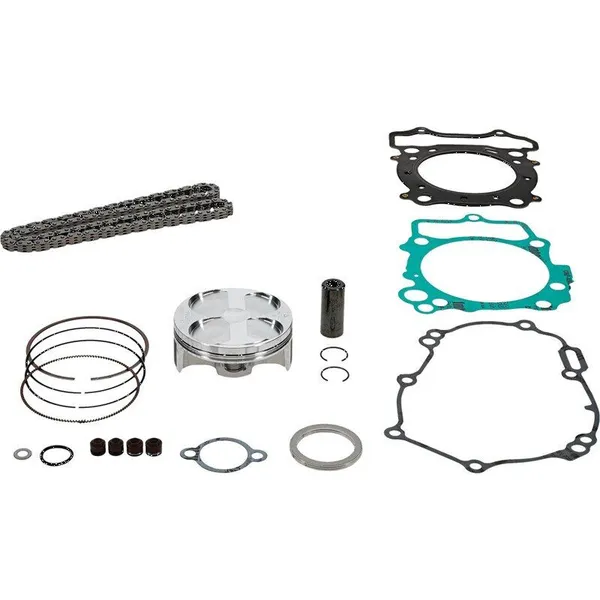

Top end piston kits include piston, rings, wrist pin, circlips and top end gaskets



Replacement two-stroke piston rings sold individually
four stroke piston rings sold as a set

Bore Size	77,00 mm
Compression Ratio	13,8:1
Displacement	250 cc
Engine Type	4-Stroke
Piston Diameter	76,96 mm
Piston Material	Aluminum Alloy, Forged
Piston Size	Standard Size B
Product Name	Piston Kit
Ring Material	Nitride Coated, Steel
Skirt Coating	Moly Coated
Style	Forged Big Bore
Units	Kit
Vendor Part Number	VTKTC24371B
