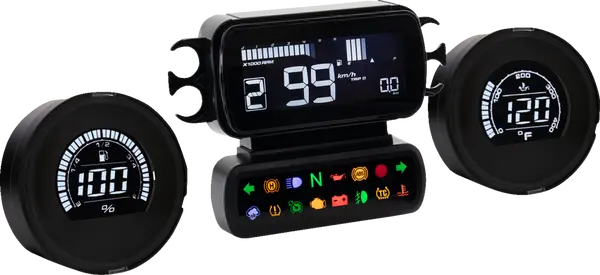

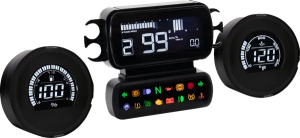

D2 Gauge Kit Black

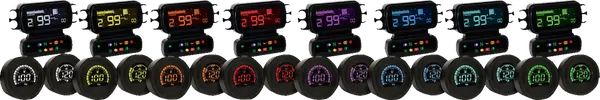

Plug-and-play meter that is equipped with an 8-color changeable LCD display


Features vital readings such as engine temperature, battery voltage, tire pressure, gear indicator and a complete system of indicator lights to monitor bike’s vital signs


Fits directly into the stock harness and works with CANBUS system


Display range: 0-124 mph


Effective temperature range: -4°F-185°F (-20°C-85°C)


12VDC battery voltage


D2 Gauge Measures: 3-7/16” L x 1-1/16” W x 2-5/8” H


Add-on kit measures: 2-3/4'' Outside Diameter x 1-3/4'' Depth


Includes fuel level, engine temp meter and adapter harness


To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.

Calibration	0 kph - 199 kph (0 mph - 124 mph)
Calibration Imperial	0 mph - 124 mph
Calibration Metric	0 kph - 199 kph
Depth	66 mm (2-5/8'')
Face Color	Black
Housing Color	Black
Length	88 mm (3-7/16'')
Model	D2
Product Name	Gauge Kit
Type	Engine Temperature
Units	Kit
Vendor Part Number	BA080050
Width	27 mm (1-1/16'')
