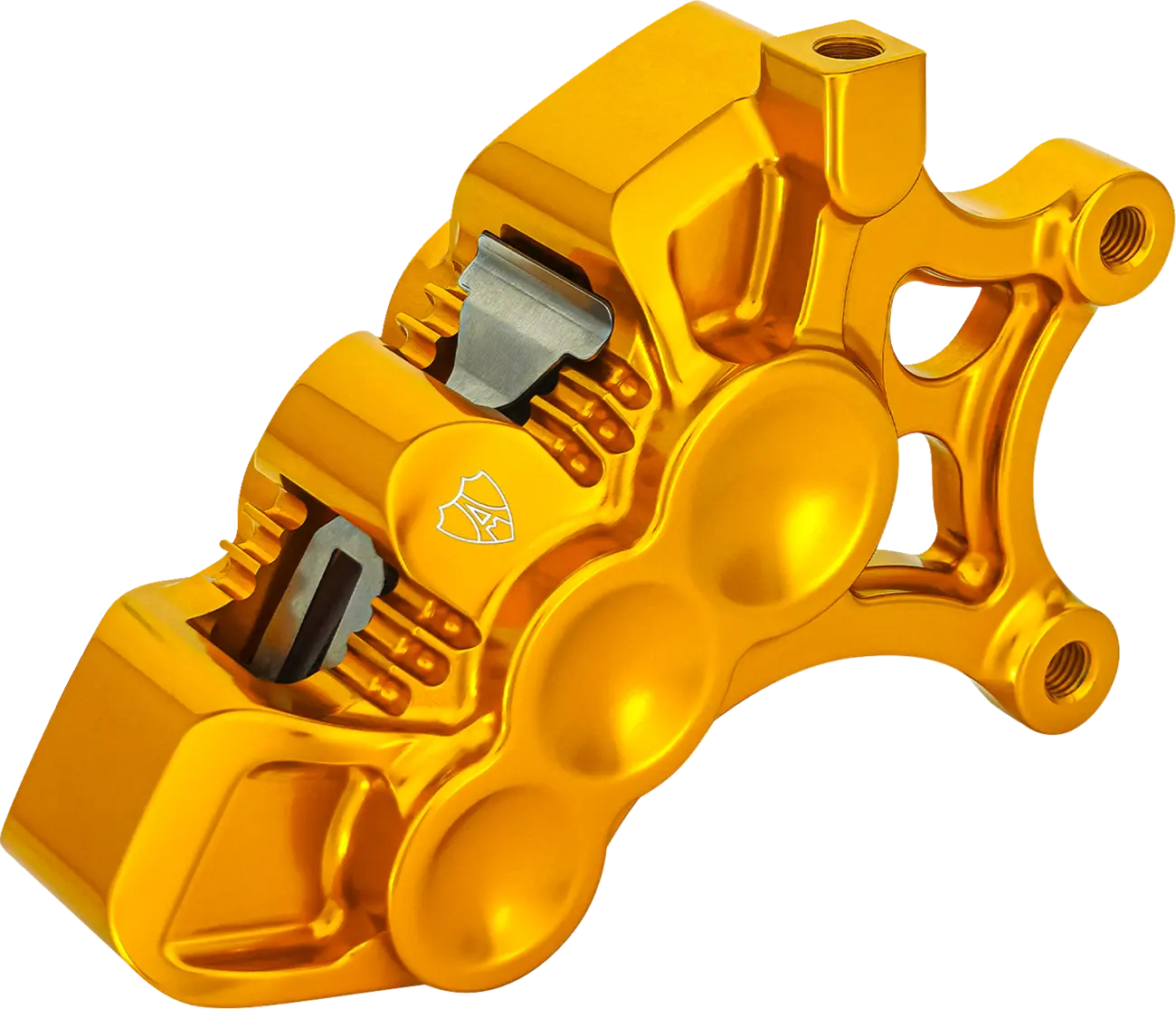

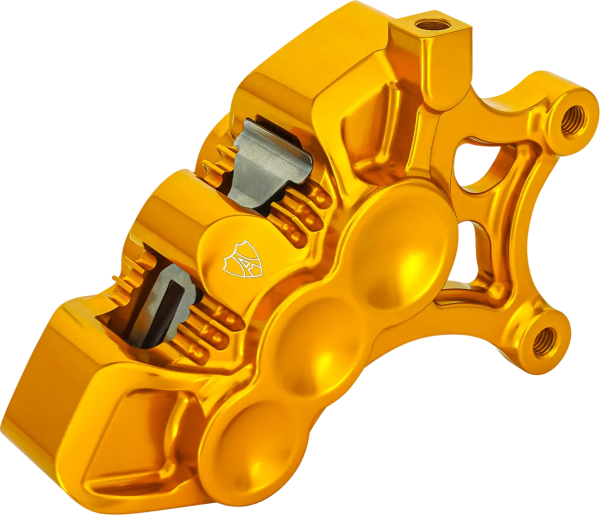

Mono Axial Brake Caliper Gold

One-piece monoblock design CNC machined from a single piece of aerospace grade billet aluminum to eliminate flex points and increase hydraulic efficiency

Differential bore six pistons with optimized diameters ensure balanced pad pressure and improved linear braking feel

Optimized hydraulic architecture for internal routing to promote consistent clamping force under high-load conditions

Single piece design eliminates the chance of leaks associated with two-piece calipers

Advanced thermal management via sculpted body with integrated cooling fins improves heat dissipation and reduces fade

Compatible with ABS or non-ABS applications

Includes bleeder screw, banjo bolt and high performance sintered brake pads with dual relief slots for enhanced heat evacuation and debris clearing

CALIPER PISTONS	6 Piston
COLOR/FINISH	Gold
MOUNTING POSITION	Right
PRODUCT NAME	Brake Caliper
ROTOR DIAMETER	356 mm (14")
TYPE	Axial
UNITS	Each
VENDOR PART NUMBER	320-112
