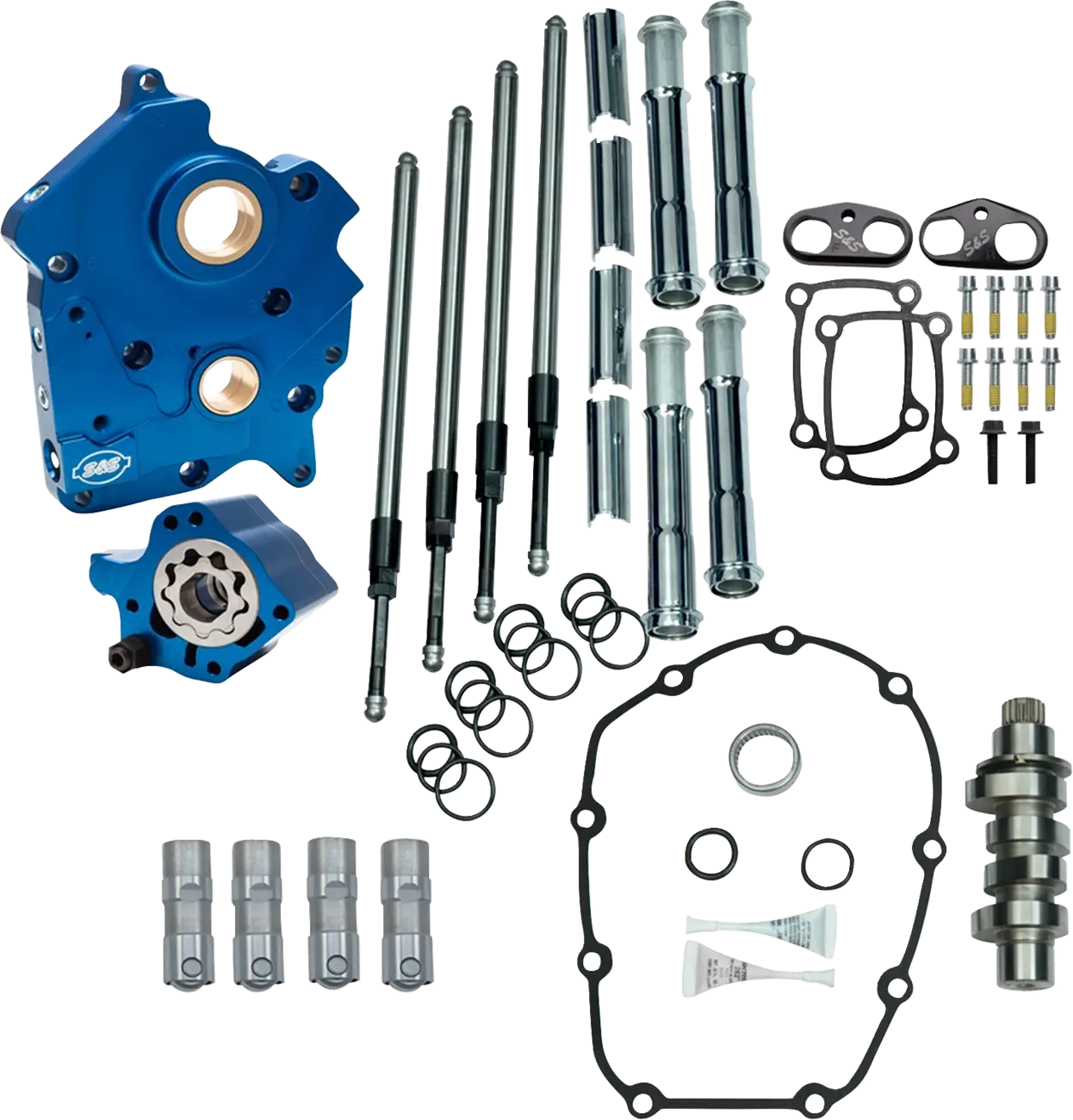

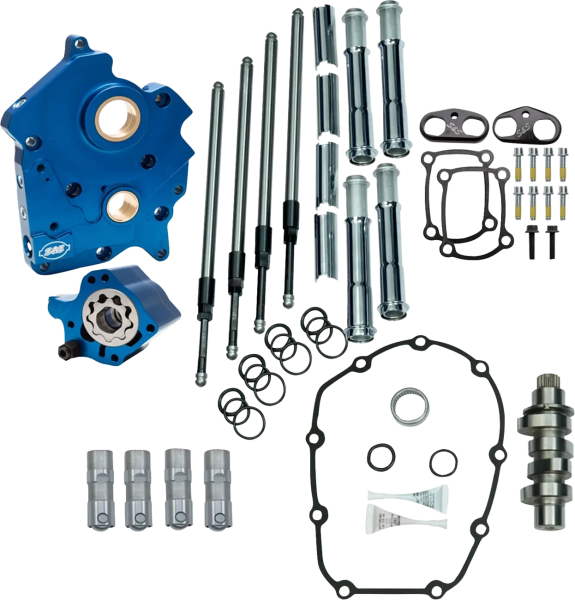

Cam Chest Kit With Hpt560 Cam

Bolt-in for easy installation

Boost performance up to 24 HP increase over stock when paired with S&S Cylce intake and exhaust systems

Gain 14 lb-ft of torque over stock for superior low-end pull and mid-range grunt

Quickee Adjustable Pushrods:

Simple installation and on bike adjustment

No need to remove rocker boxes

S&S Precision Tappets:

Hand-assembled to exacting tolerances

Reduced valvetrain noise with high RPM performance

Lift tappet cuffs ensure close tolerance for consitstent oil pressure

Oil Pump and Cam Plate:

Precision CNC machined from billet aluminum

Independent scavenge sections for flywheel cavity and cam chest

Removable passage plugs for easy servicing

Dual debris screens and magnetic pickup

+44% increase in oil supply flow and +58% increase in scavenging effeciency

Adjustable pressure relief valve (tunable while installed)

Includes S&S High Performance Cam Chain Tensioner

Works with stock valvetrain.

EXHAUST CLOSE	7°
EXHAUST DURATION	225°
EXHAUST LIFT	0,555"
EXHAUST LIFT AT TDC	0,067"
EXHAUST LOBE CENTERLINE	105°
EXHAUST OPEN	39°
FEATURES	Chrome Pushrod Tubes
GRIND	560 Series
INTAKE CLOSE	42°
INTAKE DURATION	219°
INTAKE LIFT	0,560"
INTAKE LIFT AT TDC	0,047"
INTAKE LOBE CENTERLINE	112°
INTAKE OPEN	1°
PRODUCT NAME	Camchest Kit
TYPE	Chain Drive
UNITS	Kit
VENDOR PART NUMBER	310-1432
