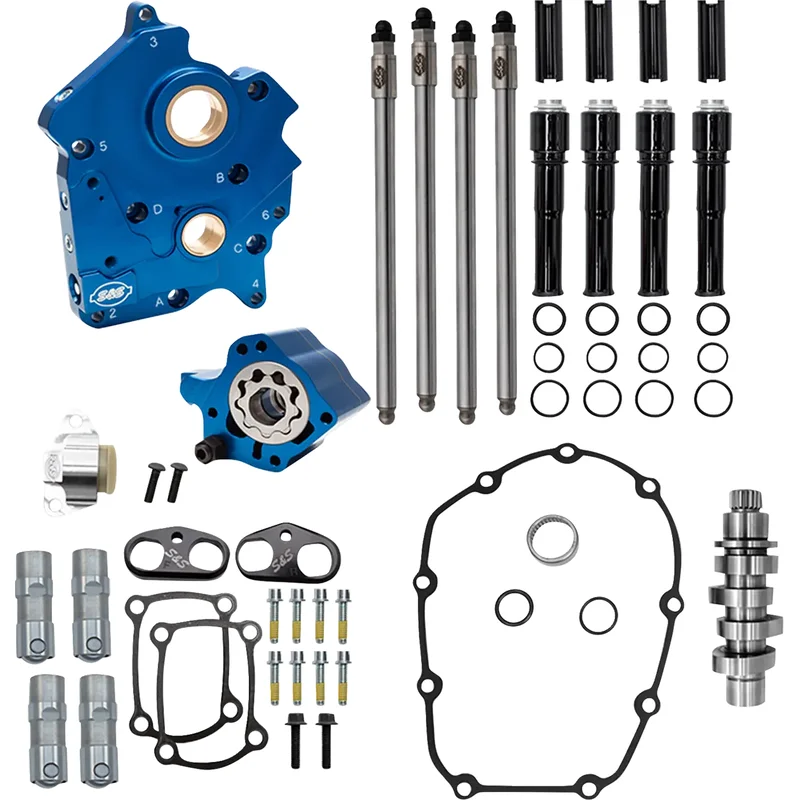

Cam Chest Kit For M8

Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish

Passage plugs are removable for servicing

Independent scavenge sections for the flywheel cavity and cam chest

Debris screens in both scavenge pickups

Increased oil flow capacity on both the feed and the scavenge sides

Adjustable pressure relief valve is adjustable with the unit installed in the engine

S&S premium tappets

Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion and improves tappet stability in high-lift situations

Made in the USA

Includes cam chain tensioner.

Will fit M8 with VVT.

APPLICATION	Oil Cooled
EXHAUST CLOSE	15°
EXHAUST DURATION	243°
EXHAUST LIFT	0,485"
EXHAUST LIFT AT TDC	0,097"
EXHAUST OPEN	48°
FEATURES	Black Pushrod Tubes
GRIND	496 Series
INTAKE CLOSE	40°
INTAKE DURATION	227°
INTAKE LIFT	0,485"
INTAKE LIFT AT TDC	0,072"
INTAKE OPEN	7°
PRODUCT NAME	Camchest Kit
TYPE	Chain Drive
UNITS	Kit
VENDOR PART NUMBER	310-1379A
